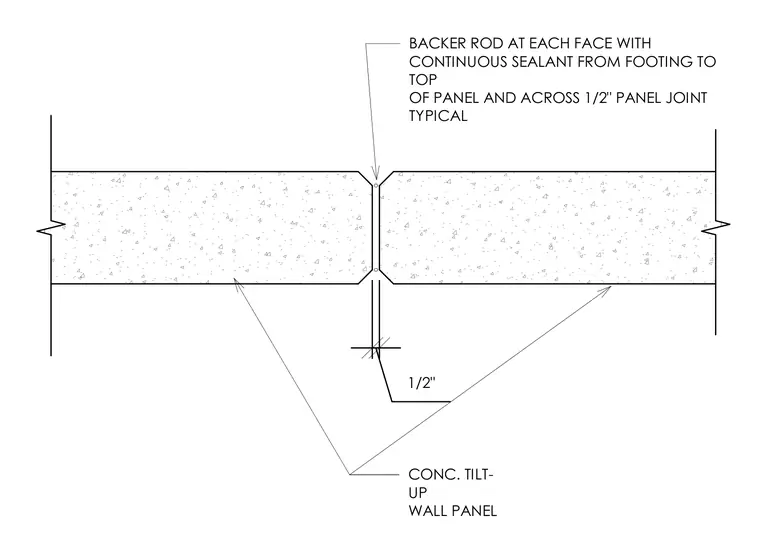

Two adjacent concrete tilt-up wall panels are separated by a one-half-inch vertical joint spanning from the foundation footing to the top of the panels. A backer rod is installed at each face of the wall within the joint. Continuous sealant is applied over the backer rods across the entire joint to seal the assembly.
BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 1/2" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 1/2"
