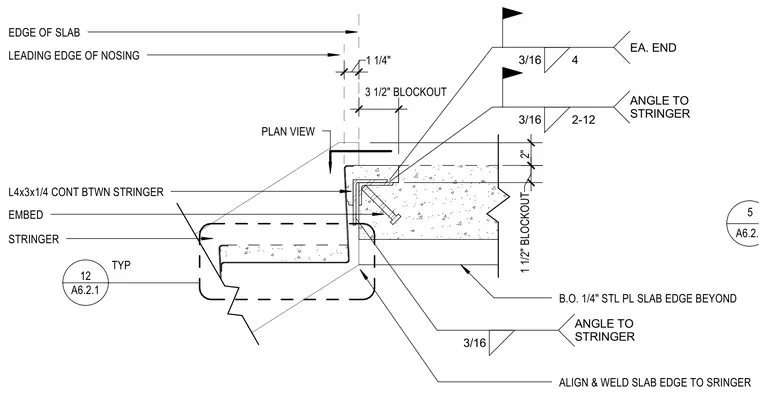

A continuous L4x3x1/4 angle connects the stair stringer to an embedded steel plate at the concrete podium slab edge. The assembly features a one-and-a-half-inch blockout and a three-and-a-half-inch edge dimension to the leading edge of the nosing. Four three-sixteenths fillet welds secure each end of the angle, supplemented by intermittent welds along the stringer. A quarter-inch steel plate at the slab edge aligns and welds directly to the stringer assembly.
STRINGER L4x3x1/4 CONT BTWN STRINGER 1 1/4" LEADING EDGE OF NOSING EDGE OF SLAB 3 1/2" BLOCKOUT 1 1/2" BLOCKOUT 2" EMBED 3/16 ANGLE TO STRINGER 3/16 4 EA. END 3/16 2-12 ANGLE TO STRINGER PLAN VIEW A6.2.1 12 TYP 5 A6.2.1 B.O. 1/4" STL PL SLAB EDGE BEYOND ALIGN & WELD SLAB EDGE TO SRINGER
