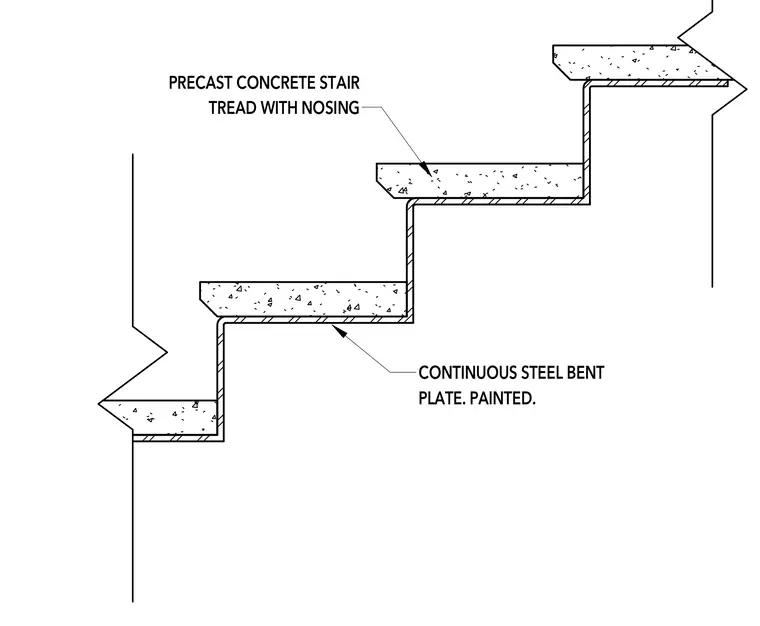

Precast concrete stair treads with integrated nosings bear directly on a continuous steel bent plate. The supporting bent plate is finished with a coat of paint.
PRECAST CONCRETE STAIR TREAD WITH NOSING CONTINUOUS STEEL BENT PLATE. PAINTED.
