Architectural · A-9X6NY

Insulated Metal Panel Opening at Alcove

Materials

Steel Metal (misc.)

Elements

Beams Walls Ceilings Waterproofing / Flashing Insulation Roof / Floor Openings

Connections

HSS Connection

About this detail

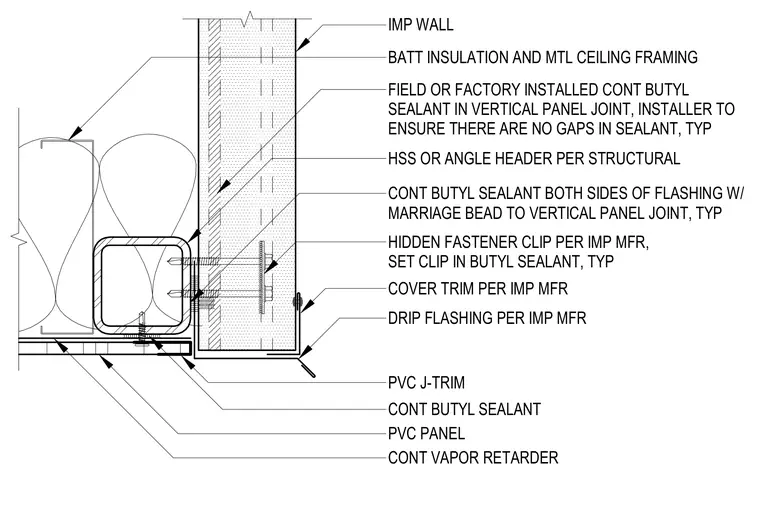

An insulated metal panel wall transitions to an alcove opening supported by a hollow structural section or angle header per structural. Hidden fastener clips set in butyl sealant secure the panels to the framing. A drip flashing with a PVC J-trim and continuous butyl sealant manages moisture at the head of the opening. Continuous vapor retarder, batt insulation, and metal ceiling framing complete the assembly.
