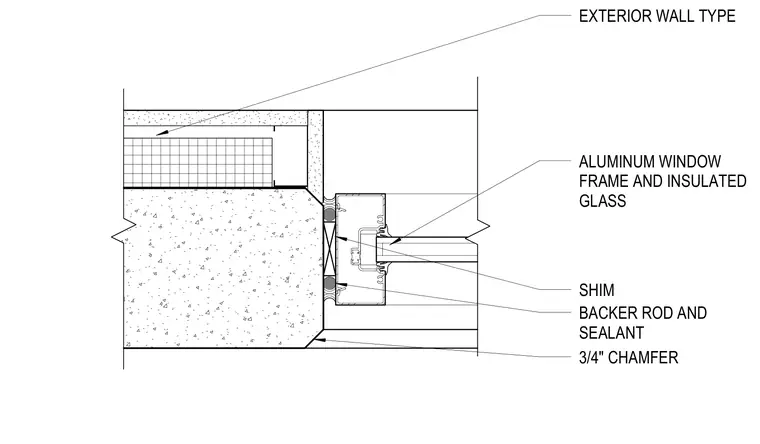

An aluminum window frame with insulated glass meets a precast concrete exterior wall at a jamb condition featuring a three-quarter inch chamfer. Shims level the window frame within the concrete opening. Backer rods and sealant seal the joint between the frame and the concrete substrate on both sides.
EXTERIOR WALL TYPE ALUMINUM WINDOW FRAME AND INSULATED GLASS BACKER ROD AND SEALANT 3/4" CHAMFER SHIM
