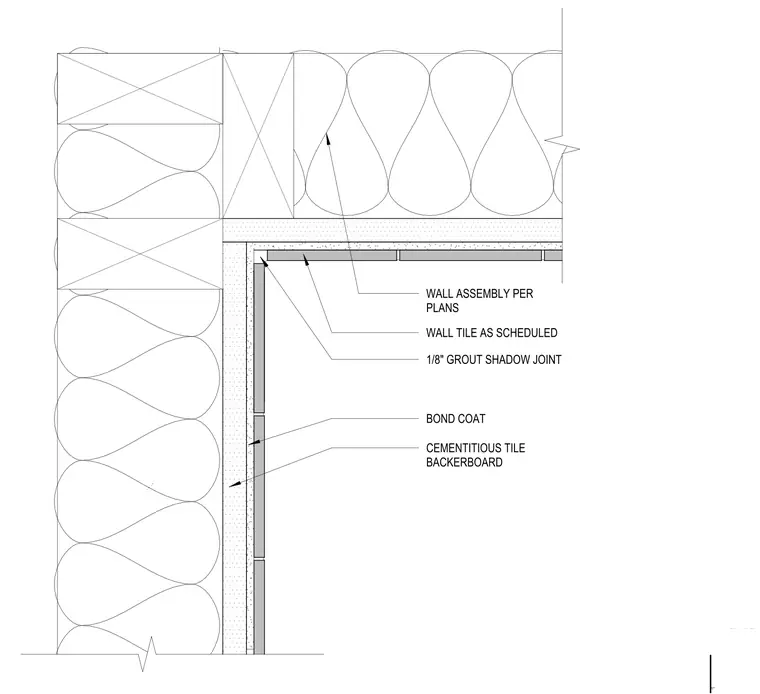

This inside corner assembly consists of a wall structure as specified in the plans, finished with a cementitious tile backerboard. A bond coat is applied to the backerboard to receive wall tile as scheduled. The corner is finished with a one-eighth inch grout shadow joint between the tiles.
