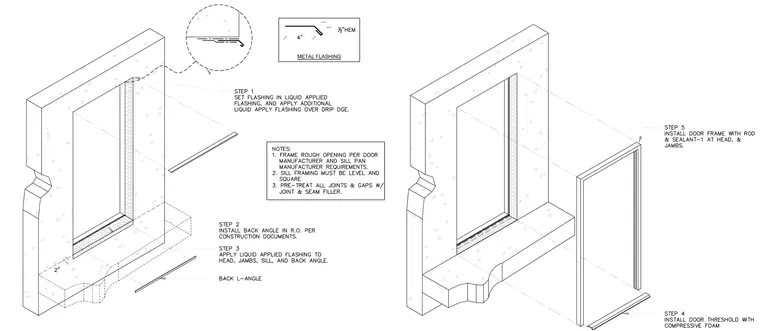

Metal flashing is set in liquid-applied flashing at the head and coated over the drip edge. A back L-angle is installed in the rough opening, followed by liquid-applied flashing across the head, jambs, sill, and back angle. The door threshold is placed over compressive foam. The door frame is secured with rods and sealed at the head and jambs with sealant.
