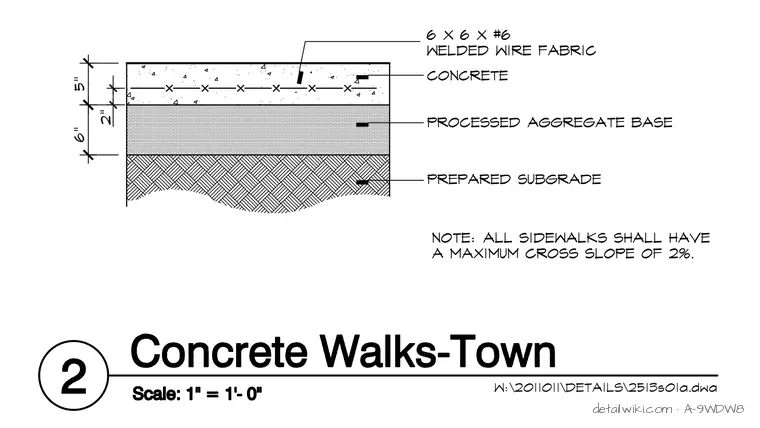

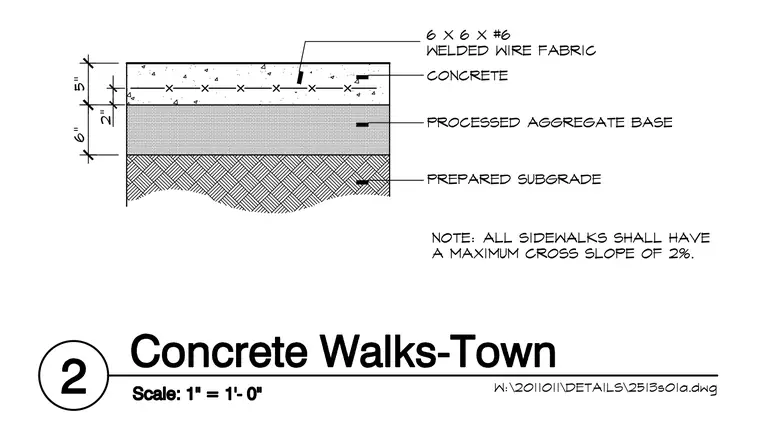

A five-inch concrete slab reinforced with six by six by number six welded wire fabric is placed over a two-inch layer within a six-inch processed aggregate base. The aggregate base rests directly upon a prepared subgrade. All sidewalks are required to have a maximum cross slope of two percent.
