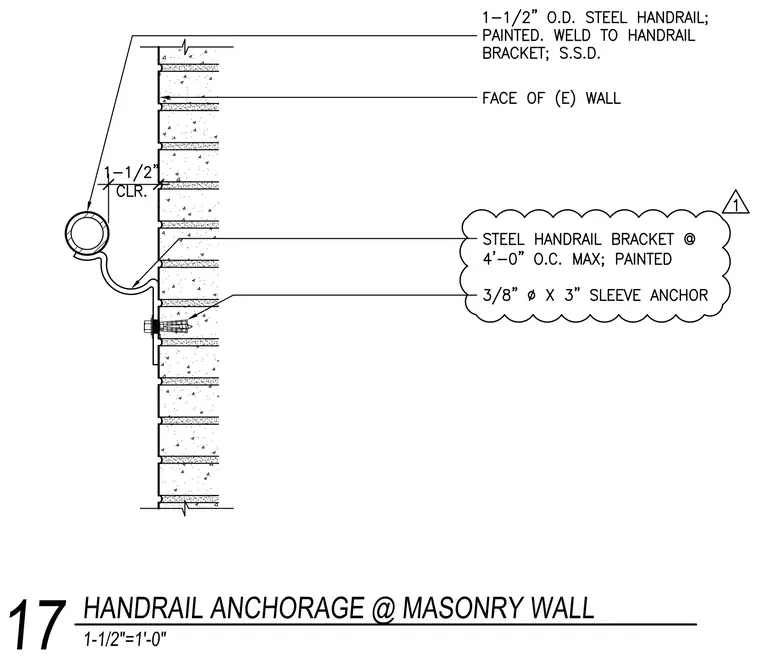

A one and one-half inch outer diameter painted steel handrail mounts to a steel handrail bracket spaced at four feet zero inches on center maximum. The bracket is secured to the face of the existing masonry wall using three-eighths inch diameter by three inch sleeve anchors. A one and one-half inch clearance is maintained between the handrail and the wall face. The handrail is welded to the bracket.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
