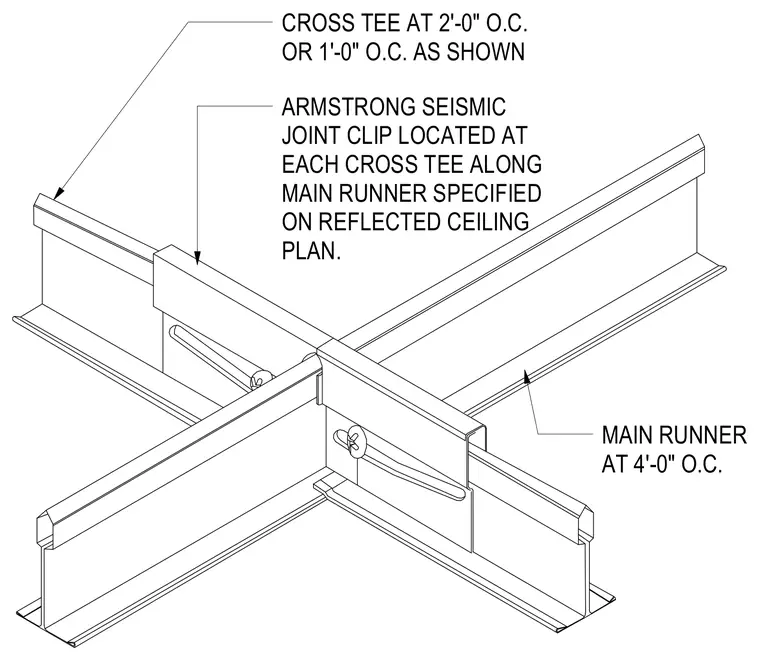

An Armstrong seismic joint clip spans across the suspended ceiling intersection, located at each cross tee along the main runner specified on the reflected ceiling plan. The main runner is spaced at four feet on center, while the cross tees are spaced at two feet or one foot on center as shown.
CROSS TEE AT 2'-0" O.C. OR 1'-0" O.C. AS SHOWN ARMSTRONG SEISMIC JOINT CLIP LOCATED AT EACH CROSS TEE ALONG MAIN RUNNER SPECIFIED ON REFLECTED CEILING PLAN. MAIN RUNNER AT 4'-0" O.C.
