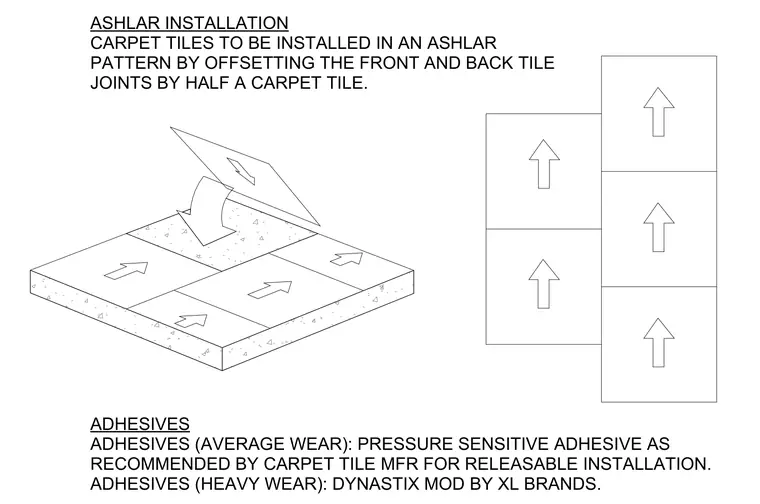

Carpet tiles are installed in an ashlar pattern by offsetting front and back tile joints by half a carpet tile, following the indicated directional arrows. For average wear areas, apply a pressure-sensitive adhesive as recommended by the carpet tile manufacturer for a releasable installation. For heavy wear areas, use Dynastix Mod by XL Brands.
ASHLAR INSTALLATION CARPET TILES TO BE INSTALLED IN AN ASHLAR PATTERN BY OFFSETTING THE FRONT AND BACK TILE JOINTS BY HALF A CARPET TILE. ADHESIVES ADHESIVES (AVERAGE WEAR): PRESSURE SENSITIVE ADHESIVE AS RECOMMENDED BY CARPET TILE MFR FOR RELEASABLE INSTALLATION. ADHESIVES (HEAVY WEAR): DYNASTIX MOD BY XL BRANDS.
