Architectural · A-9W9FZ

Roof Hatch and Folding Guardrail at Metal Deck

Materials

Elements

Beams Stairs Railings / Guards Roofs Decks Insulation Drainage Roof / Floor Openings

About this detail

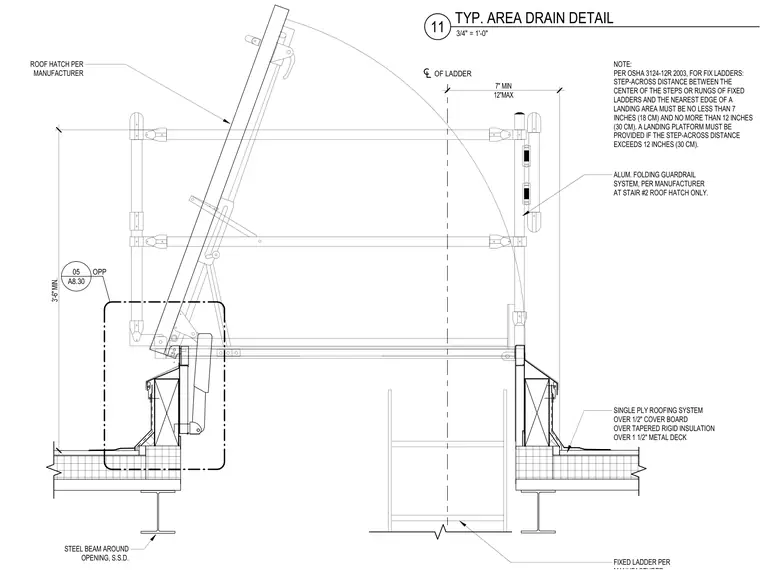

A roof hatch equipped with an aluminum folding guardrail system at a stair roof opening. The assembly bears on a 1 1/2-inch metal deck supported by structural steel framing, finished with tapered rigid insulation, a 1/2-inch cover board, and a single-ply roofing system. A fixed ladder aligns with the hatch opening, maintaining a regulated step-across distance between 7 inches minimum and 12 inches maximum in accordance with OSHA standards. The folding guardrail system is specific to the stair roof hatch location.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
