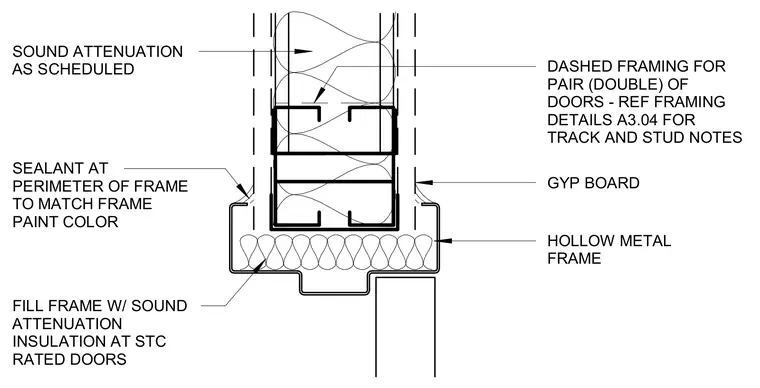

An interior door detail featuring a hollow metal frame installed within a gypsum board partition with dashed framing indicated for a pair of doors. The hollow metal frame is filled with sound attenuation insulation at STC rated doors. Perimeter sealant matches the frame paint color at the junction with the gypsum board. Track and stud framing notes are referenced for the partition construction.
DASHED FRAMING FOR PAIR (DOUBLE) OF DOORS - REF FRAMING DETAILS A3.04 FOR TRACK AND STUD NOTES GYP BOARD HOLLOW METAL FRAME SEALANT AT PERIMETER OF FRAME TO MATCH FRAME PAINT COLOR FILL FRAME W/ SOUND ATTENUATION INSULATION AT STC RATED DOORS SOUND ATTENUATION AS SCHEDULED
