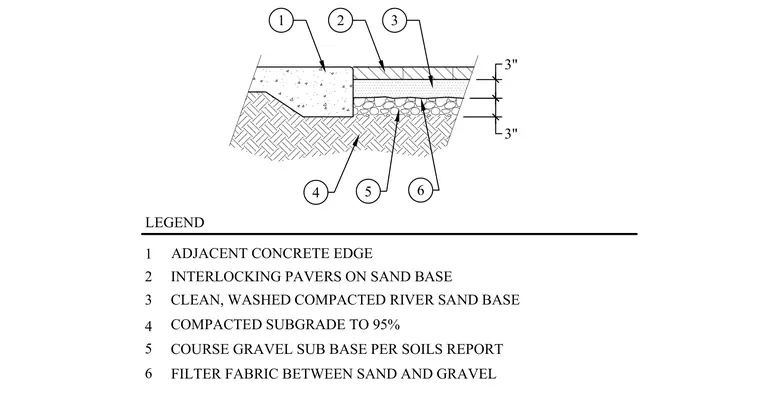

Interlocking pavers rest upon a clean, washed compacted river sand base with a three-inch thickness. A filter fabric separates the sand base from a course gravel sub-base, which sits over a compacted subgrade compacted to ninety-five percent per the soils report. An adjacent concrete edge restrains the perimeter of the paver assembly.
1 2 LEGEND 3 3" 3" 1 INTERLOCKING PAVERS ON SAND BASE 2 3 4 5 ADJACENT CONCRETE EDGE CLEAN, WASHED COMPACTED RIVER SAND BASE COMPACTED SUBGRADE TO 95% 4 COURSE GRAVEL SUB BASE PER SOILS REPORT 5 6 FILTER FABRIC BETWEEN SAND AND GRAVEL 6
