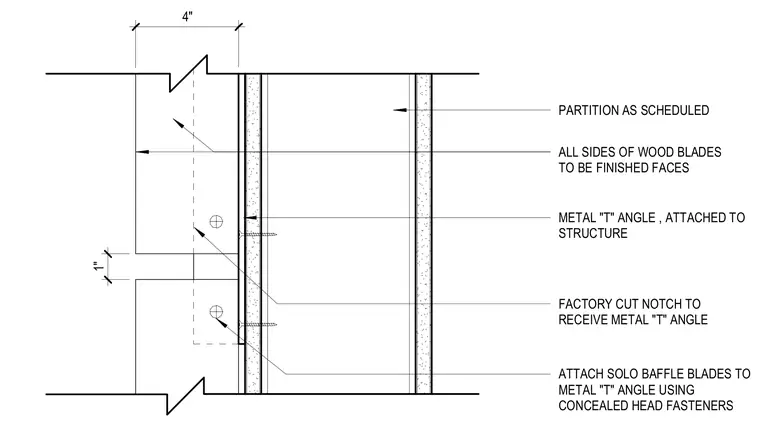

Wood baffle blades feature factory-cut notches designed to receive a metal tee angle. All sides of the wood blades are finished faces. The metal tee angle is attached to the partition structure as scheduled. Solo baffle blades are secured to the metal tee angle using concealed head fasteners.
1" 4" ALL SIDES OF WOOD BLADES TO BE FINISHED FACES ATTACH SOLO BAFFLE BLADES TO METAL "T" ANGLE USING CONCEALED HEAD FASTENERS FACTORY CUT NOTCH TO RECEIVE METAL "T" ANGLE METAL "T" ANGLE , ATTACHED TO STRUCTURE PARTITION AS SCHEDULED
