A 3/8-inch bent plate jamb guard is anchored to a concrete tilt-up wall and finished with two coats of safety yellow gloss enamel paint up to plus four feet. A three-inch heavy-duty steel track supports an insulated steel sectional door positioned alongside the jamb guard. Continuous weather seal is applied all around the perimeter of the opening. A dead bolt latch is located six inches above the jamb guard.

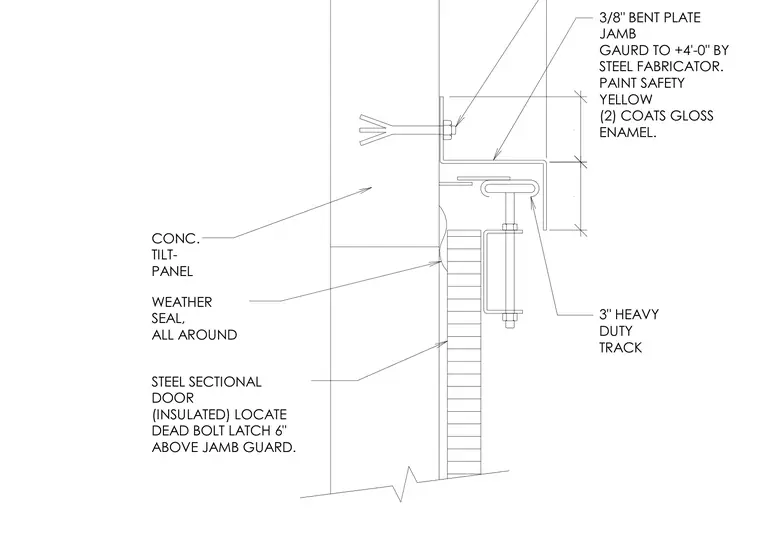

4" 4" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND CONC. TILT- PANEL
