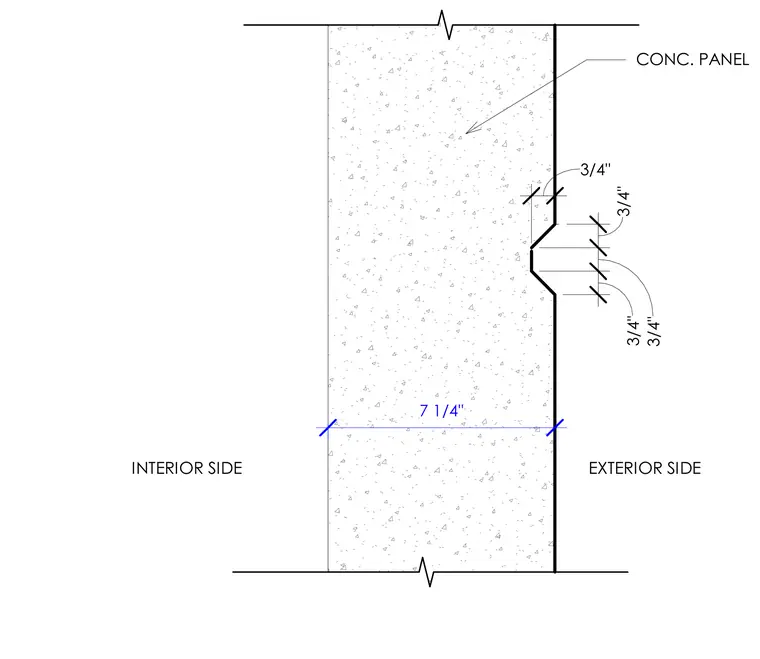

An architectural concrete panel features a decorative exterior reveal detail. The concrete panel has an overall thickness of seven and one-quarter inches. The exterior reveal consists of multiple three-quarter inch dimensioned steps forming the profile.
EXTERIOR SIDE CONC. PANEL INTERIOR SIDE 3/4" 3/4" 3/4" 3/4" 7 1/4"
