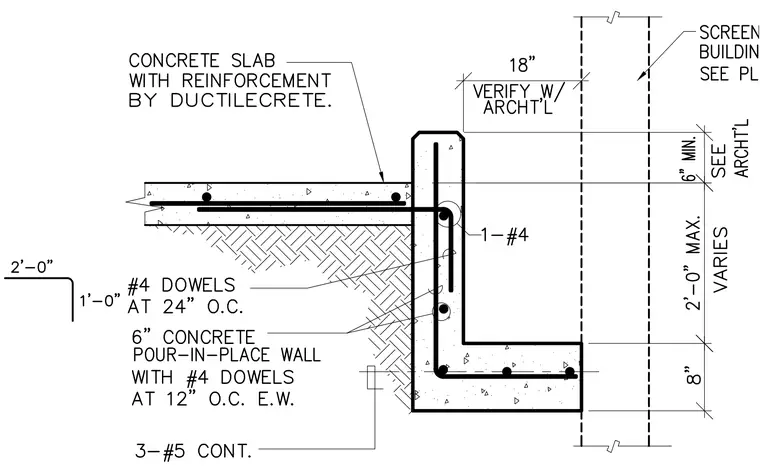

A concrete slab with reinforcement by Ductilecrete terminates against a six-inch concrete pour-in-place wall forming a vertical gate slot. The wall features an eight-inch base, a varying height up to two feet maximum, and a six-inch minimum clearance. Reinforcement includes one number-four bar at the slot bend, number-four dowels at twenty-four inches on center, number-four dowels at twelve inches on center each way within the wall, and three continuous number-five bars. An eighteen-inch dimension is verified with architectural plans, aligning with a screen building assembly.
