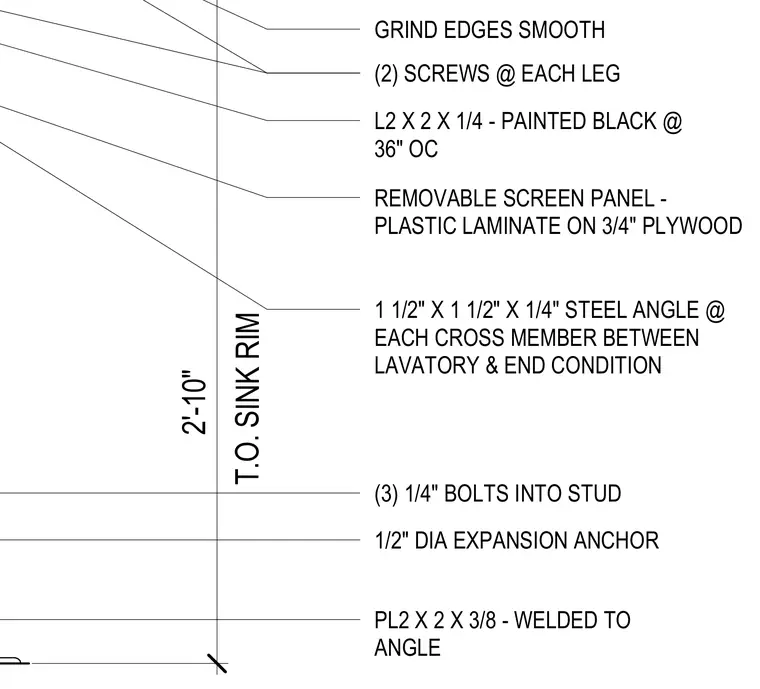

This assembly details a removable screen panel constructed from plastic laminate bonded to three-quarter-inch plywood, positioned at two feet ten inches to the top of the sink rim. Support framing consists of a one-and-one-half by one-and-one-half by one-quarter-inch steel angle at each cross member between the lavatory and end condition with edges ground smooth. Two screws secure each leg of the painted black two-by-two-by-one-quarter-inch steel angle spaced at thirty-six inches on center. A two-by-two-by-three-eighths-inch plate is welded to the angle and secured with one-half-inch diameter expansion anchors and three one-quarter-inch bolts into the stud.
T.O. SINK RIM 2'-10" REMOVABLE SCREEN PANEL - PLASTIC LAMINATE ON 3/4" PLYWOOD 1 1/2" X 1 1/2" X 1/4" STEEL ANGLE @ EACH CROSS MEMBER BETWEEN LAVATORY & END CONDITION GRIND EDGES SMOOTH (2) SCREWS @ EACH LEG L2 X 2 X 1/4 - PAINTED BLACK @ 36" OC PL2 X 2 X 3/8 - WELDED TO ANGLE 1/2" DIA EXPANSION ANCHOR (3) 1/4" BOLTS INTO STUD
