Architectural · A-9TS9V

Curtain Wall Sill at Concrete Beam and Metal Stud Wall

Materials

Concrete Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Waterproofing / Flashing Insulation Drainage Anchors / Embeds Connections / Plates

About this detail

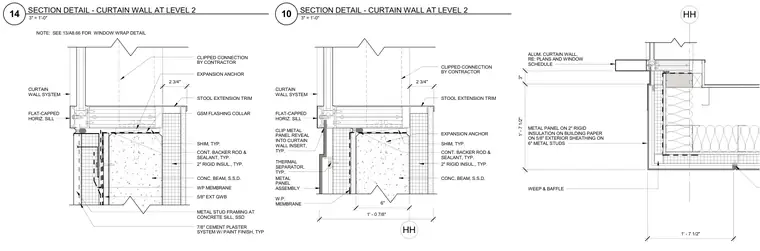

An aluminum curtain wall system interfaces with a concrete beam and six-inch metal stud framing using a flat-capped horizontal sill and a clip metal panel reveal with a thermal separator. A clipped connection secured by an expansion anchor anchors the assembly to the concrete beam. A waterproof membrane and a galvanized sheet metal flashing collar provide moisture protection above a two-inch rigid insulation layer and exterior gypsum wallboard. A stool extension trim finishes the interior sill condition, while continuous backer rod and sealant seal the exterior joints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
