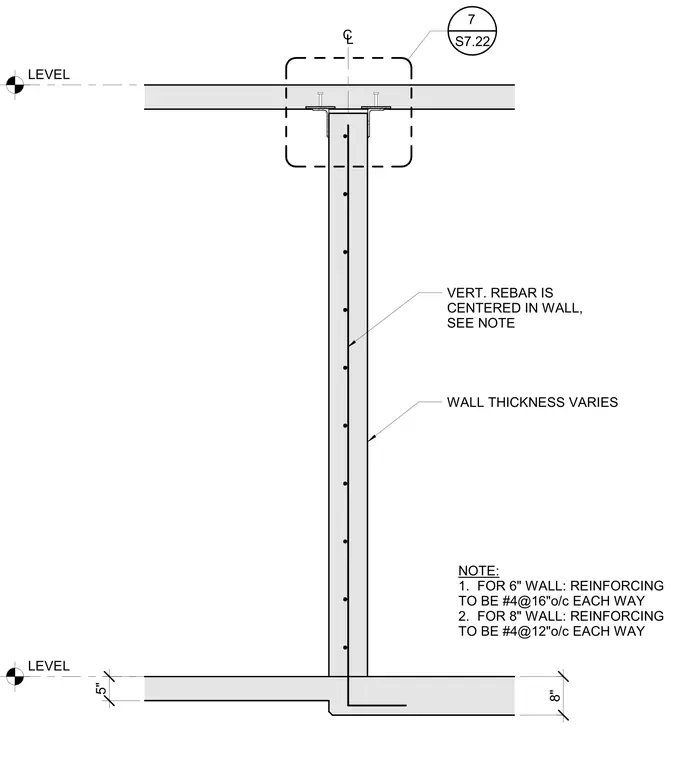

This interior wall section details a reinforced concrete wall supported by an eight-inch concrete slab with varying wall thicknesses. Vertical rebar is centered within the wall and tied to dowels extending from the foundation slab. For a six-inch wall, reinforcing is specified as number four bars at sixteen inches on center each way. For an eight-inch wall, reinforcing consists of number four bars at twelve inches on center each way.
LEVEL LEVEL 8" 5" C L VERT. REBAR IS CENTERED IN WALL, SEE NOTE WALL THICKNESS VARIES 7 S7.22 NOTE: 1. FOR 6" WALL: REINFORCING TO BE #4@16"o/c EACH WAY 2. FOR 8" WALL: REINFORCING TO BE #4@12"o/c EACH WAY
