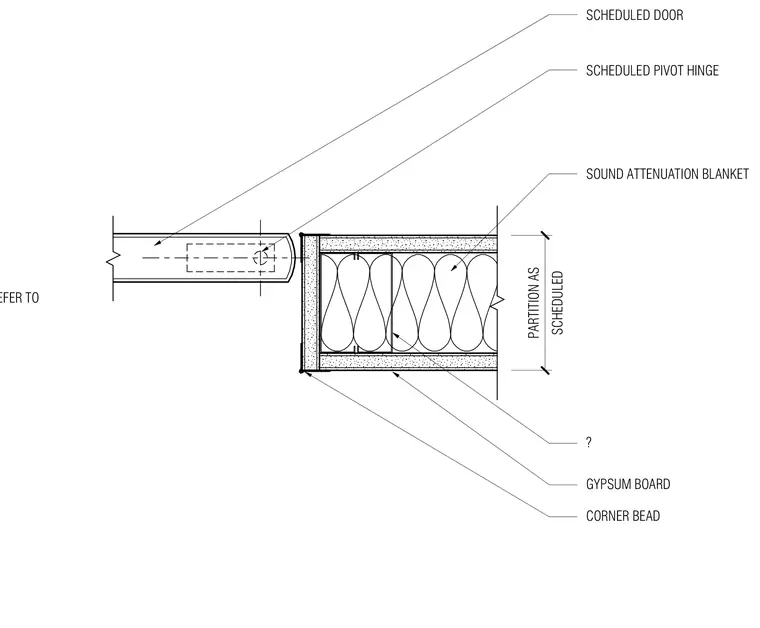

A scheduled pivot door with a concealed pivot hinge engages a gypsum board partition finished with corner beads at the jamb. The partition assembly consists of scheduled metal studs, gypsum board on both sides, and a sound attenuation blanket within the cavity. The door frame condition is finished flush with corner beads meeting the wall finish as scheduled.
SCHEDULED PARTITION AS ? GYPSUM BOARD SOUND ATTENUATION BLANKET CORNER BEAD SCHEDULED PIVOT HINGE SCHEDULED DOOR FLOOR FINISH AS SCHEDULED. REFER TO
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
