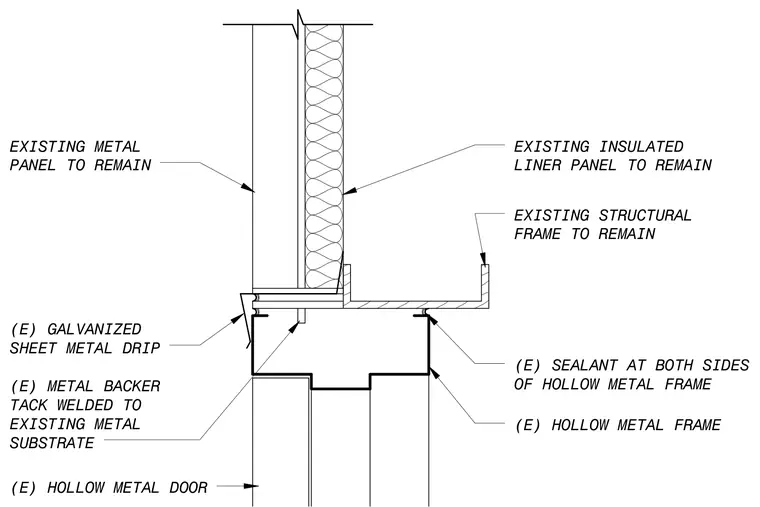

An existing hollow metal door frame interfaces with an existing structural steel frame and an existing insulated metal panel wall assembly. A galvanized sheet metal drip flashing is installed at the exterior above the frame. A metal backer is tack welded to the existing metal substrate. Existing sealant is applied at both sides of the hollow metal frame junctions.
(E) HOLLOW METAL DOOR (E) SEALANT AT BOTH SIDES OF HOLLOW METAL FRAME (E) HOLLOW METAL FRAME EXISTING STRUCTURAL FRAME TO REMAIN (E) METAL BACKER TACK WELDED TO EXISTING METAL SUBSTRATE (E) GALVANIZED SHEET METAL DRIP EXISTING METAL PANEL TO REMAIN EXISTING INSULATED LINER PANEL TO REMAIN l l i £
