Architectural · A-9T9TQ

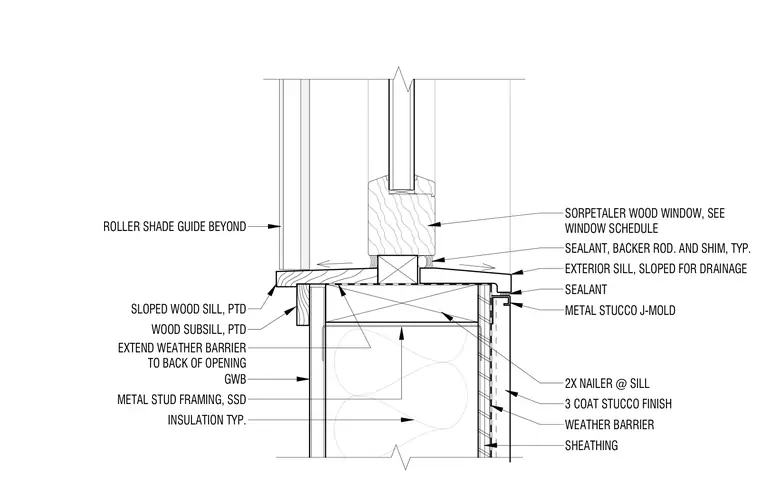

Classroom Window Sill and Stucco Wall Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Windows Insulation Roof / Floor Openings

About this detail

The assembly is framed with metal stud backup carrying sheathing, insulation, and a three-coat exterior stucco finish protected by a weather barrier extended to the back of the rough opening. A painted wood subsill bears on the framing beneath a painted sloped exterior wood sill that is sloped for drainage. The wood window rests on shims and is sealed with backer rod and joint sealant at the exterior joint. A metal stucco J-mold terminates the exterior finish against the sill. The interior is finished with gypsum wallboard, and a roller shade guide is positioned beyond the interior sill.
