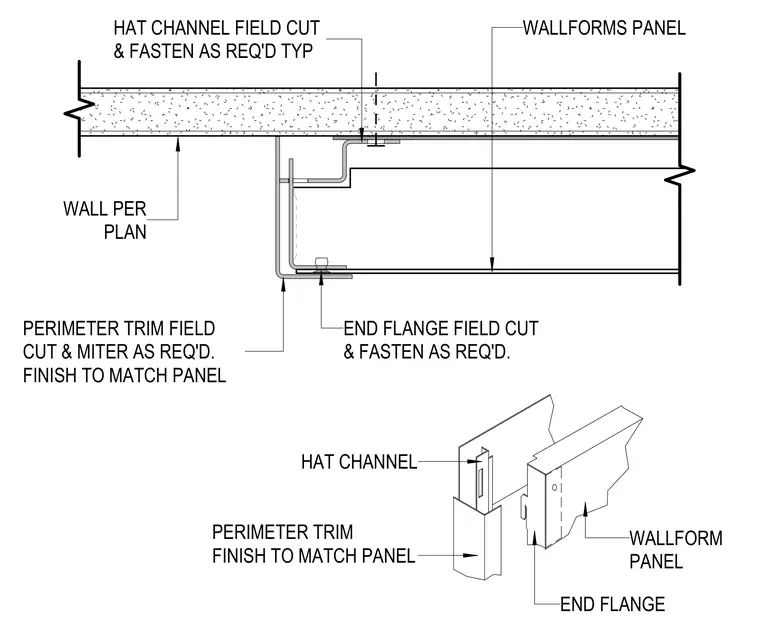

Perimeter trim is field cut and mitered as required with a finish matching the panel. The wallforms panel attaches to a hat channel that is field cut and fastened as required. An end flange is similarly field cut and fastened to complete the perimeter intersection at the wall per plan.
PERIMETER TRIM FIELD CUT & MITER AS REQ'D. FINISH TO MATCH PANEL WALLFORMS PANEL WALL PER PLAN HAT CHANNEL FIELD CUT & FASTEN AS REQ'D TYP HAT CHANNEL WALLFORM PANEL PERIMETER TRIM FINISH TO MATCH PANEL END FLANGE FIELD CUT & FASTEN AS REQ'D. END FLANGE
