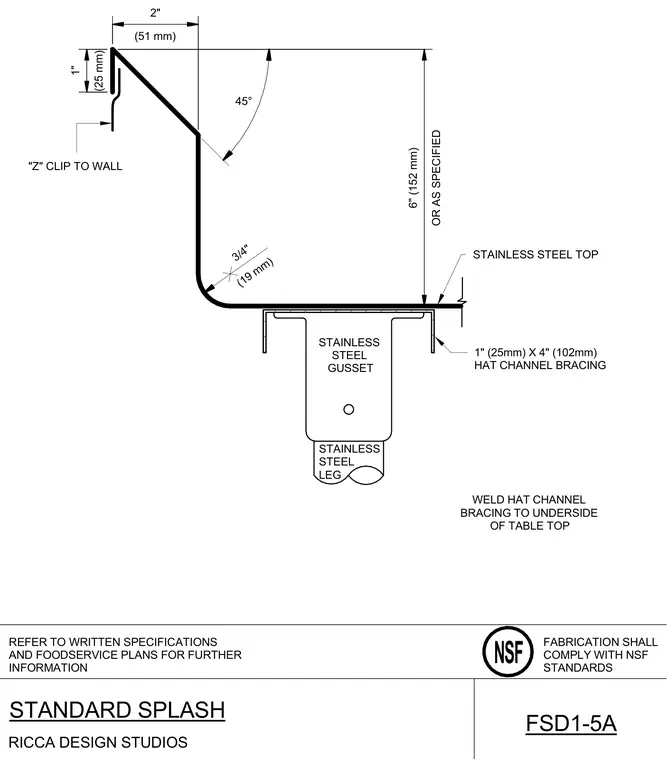

A stainless steel top connects to a wall via a Z-clip and forms a standard splash with a one-inch vertical return and a forty-five degree transition. The underside of the countertop is reinforced with a one-inch by four-inch stainless steel hat channel bracing welded directly to the table top. A stainless steel gusset and leg assembly connects beneath the countertop for vertical support.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF STANDARD SPLASH FSD1-5A 1" (25mm) X 4" (102mm) HAT CHANNEL BRACING "Z" CLIP TO WALL STAINLESS STEEL TOP STAINLESS STEEL GUSSET STAINLESS STEEL LEG WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP (51 mm) 2" (25 mm) 1" OR AS SPECIFIED 6" (152 mm) 45° (19 mm) 3/4"
