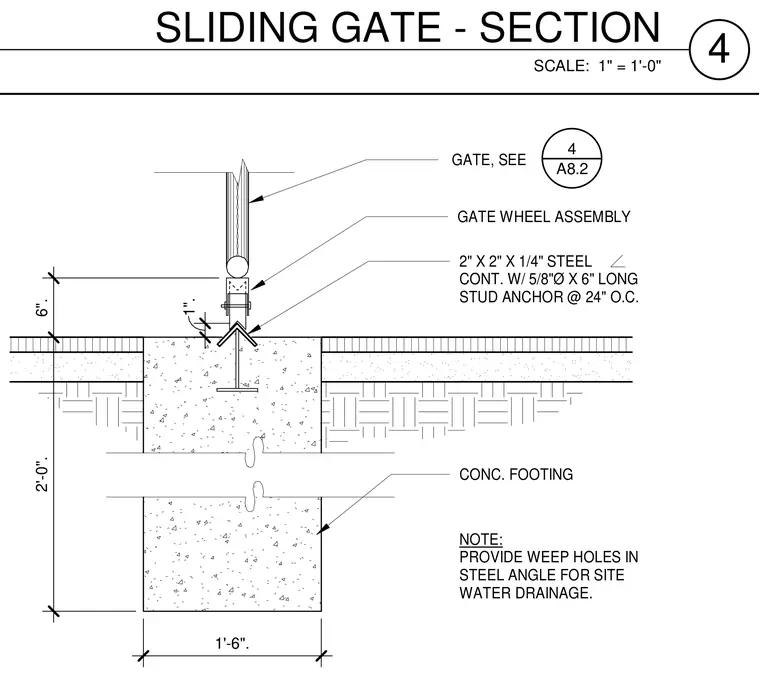

A continuous two-inch by two-inch by one-quarter-inch steel angle supports the sliding gate wheel assembly and is anchored to a concrete footing with five-eighths-inch diameter by six-inch long stud anchors spaced at twenty-four inches on center. The concrete footing extends one foot six inches wide and includes weep holes in the steel angle for site water drainage. A reference callout directs to sheet A8.2 for further gate details.
2" X 2" X 1/4" STEEL CONT. W/ 5/8"Ø X 6" LONG STUD ANCHOR @ 24" O.C. CONC. FOOTING GATE, SEE GATE WHEEL ASSEMBLY NOTE: PROVIDE WEEP HOLES IN STEEL ANGLE FOR SITE WATER DRAINAGE. 1'-6". 1". 2'-0". 6". 4 A8.2 SCALE: 1" = 1'-0" 4 SLIDING GATE - SECTION
