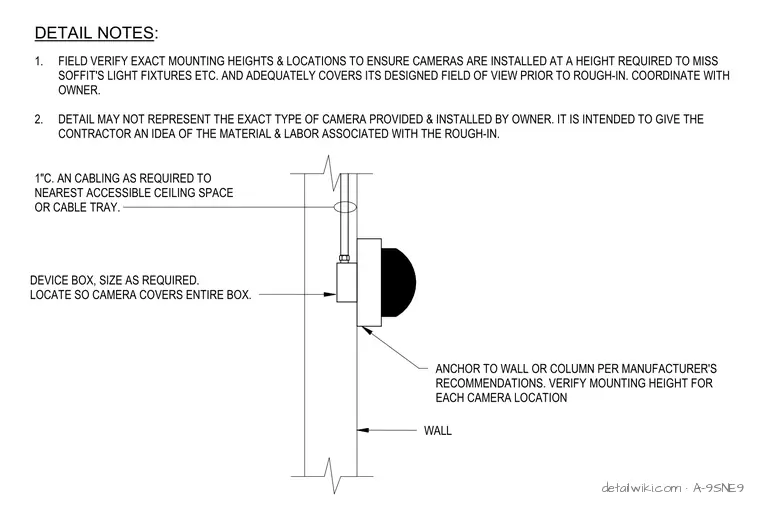

Security cameras mount directly to a wall or column using anchors specified by the manufacturer based on field verification of mounting heights and locations. A one-inch conduit runs cabling as required from the device box to the nearest accessible ceiling space or cable tray. The device box is sized as required and positioned to ensure complete coverage by the camera. Contractors coordinate with the owner to verify locations, avoiding soffit light fixtures and ensuring proper field of view prior to rough-in.
DETAIL NOTES: ANCHOR TO WALL OR COLUMN PER MANUFACTURER'S RECOMMENDATIONS. VERIFY MOUNTING HEIGHT FOR EACH CAMERA LOCATION WALL 1"C. AN CABLING AS REQUIRED TO NEAREST ACCESSIBLE CEILING SPACE OR CABLE TRAY. DEVICE BOX, SIZE AS REQUIRED. LOCATE SO CAMERA COVERS ENTIRE BOX. 1. FIELD VERIFY EXACT MOUNTING HEIGHTS & LOCATIONS TO ENSURE CAMERAS ARE INSTALLED AT A HEIGHT REQUIRED TO MISS SOFFIT'S LIGHT FIXTURES ETC. AND ADEQUATELY COVERS ITS DESIGNED FIELD OF VIEW PRIOR TO ROUGH-IN. COORDINATE WITH OWNER. 2. DETAIL MAY NOT REPRESENT THE EXACT TYPE OF CAMERA PROVIDED & INSTALLED BY OWNER. IT IS INTENDED TO GIVE THE CONTRACTOR AN IDEA OF THE MATERIAL & LABOR ASSOCIATED WITH THE ROUGH-IN.
