Non-Rated Partial Height Partition Head Sill and Plan Detail

Materials

Concrete Steel Timber / Wood Stone Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Ceilings Floors / Slabs Bracing Insulation Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite Deck Attachment Embed Plate

About this detail

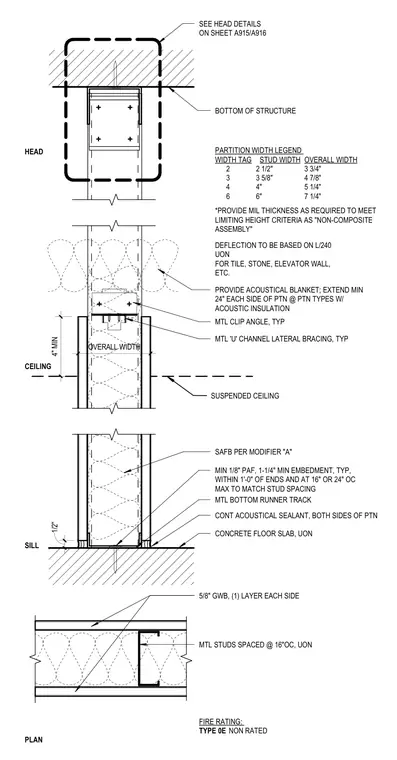

This partial-height non-rated partition detail shows metal studs spaced at sixteen inches on center with one layer of five-eighths inch gypsum wallboard on each side. The head connection secures to the bottom of the structure using a metal runner track with metal clip angles and a metal U-channel for lateral bracing. The sill anchors to the concrete floor slab using minimum one-eighth inch powder-actuated fasteners with one and one-quarter inch minimum embedment, supplemented by continuous acoustical sealant on both sides. Sound attenuation fire blankets are installed within the stud cavity, extending a minimum of twenty-four inches on each side at acoustic partition types.
