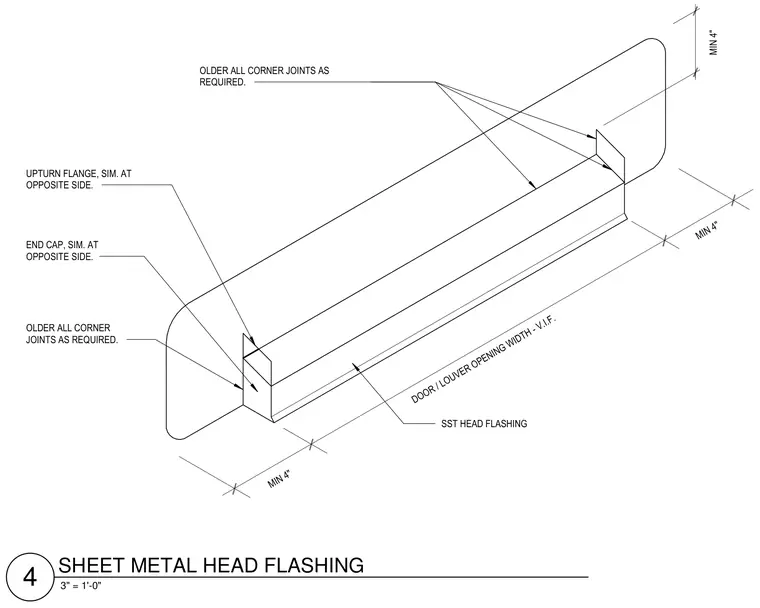

An axonometric detail of a stainless steel head flashing assembly designed for door or louver openings with a width verified in the field. The flashing features an upturn flange and end caps on both sides, requiring soldered or sealed corner joints as needed. Minimum four-inch end extensions are provided beyond the opening width.
END CAP, SIM. AT OPPOSITE SIDE. DOOR / LOUVER OPENING WIDTH - V.I.F. MIN 4" MIN 4" MIN 4" UPTURN FLANGE, SIM. AT OPPOSITE SIDE. SST HEAD FLASHING OLDER ALL CORNER JOINTS AS REQUIRED. OLDER ALL CORNER JOINTS AS REQUIRED. 3" = 1'-0" 4 SHEET METAL HEAD FLASHING
