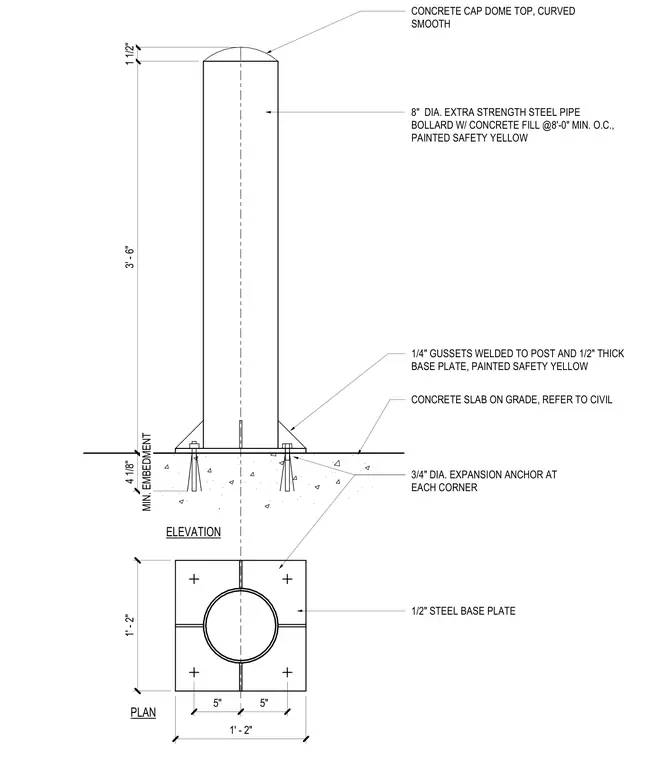

An eight-inch diameter extra-strength steel pipe bollard is filled with concrete and topped with a smooth curved concrete cap dome, finished with safety yellow paint. The post mounts to a one-half-inch thick steel base plate, reinforced with one-quarter-inch gussets welded to the post and base plate. Four three-quarter-inch diameter expansion anchors secure each corner of the base plate into the concrete slab on grade, providing a minimum embedment of four and one-eighth inches. The square base plate measures one foot two inches on each side with the anchor bolts spaced five inches from center.
MIN. EMBEDMENT 4 1/8" 3' - 6" 1 1/2" 1' - 2" 1' - 2" 5" 5" PLAN ELEVATION 1/4" GUSSETS WELDED TO POST AND 1/2" THICK BASE PLATE, PAINTED SAFETY YELLOW 3/4" DIA. EXPANSION ANCHOR AT EACH CORNER 1/2" STEEL BASE PLATE CONCRETE CAP DOME TOP, CURVED SMOOTH 8" DIA. EXTRA STRENGTH STEEL PIPE BOLLARD W/ CONCRETE FILL @8'-0" MIN. O.C., PAINTED SAFETY YELLOW CONCRETE SLAB ON GRADE, REFER TO CIVIL
