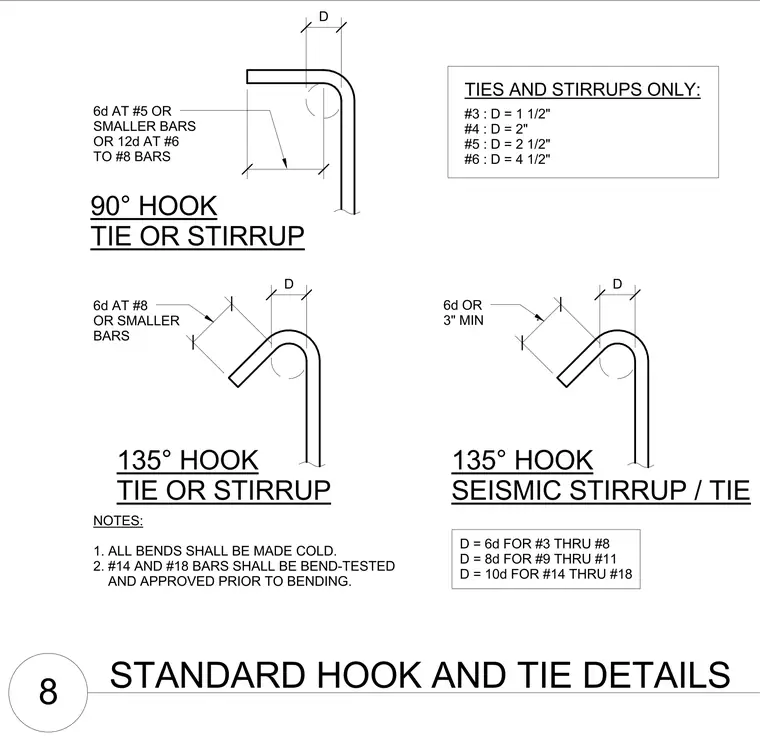

Standard hook and tie details specify bend diameters and extension lengths for reinforcing bars in concrete structures. A ninety-degree hook tie or stirrup requires a bend diameter D equal to six bar diameters for number five or smaller bars, or twelve bar diameters for number six through number eight bars. A one-hundred-thirty-five-degree hook tie or stirrup uses a bend diameter of six bar diameters for number eight or smaller bars with specified extension lengths. A one-hundred-thirty-five-degree seismic stirrup or tie requires a bend diameter of six bar diameters or three inches minimum. Specific tie and stirrup bend diameters are listed for number three through number six bars. All bends must be made cold, and number fourteen and number eighteen bars require bend testing and approval prior to bending.
D = 6d FOR #3 THRU #8 D = 8d FOR #9 THRU #11 D = 10d FOR #14 THRU #18 NOTES: 1. ALL BENDS SHALL BE MADE COLD. 2. #14 AND #18 BARS SHALL BE BEND-TESTED AND APPROVED PRIOR TO BENDING. 6d AT #5 OR SMALLER BARS OR 12d AT #6 TO #8 BARS 6d AT #8 OR SMALLER BARS TIES AND STIRRUPS ONLY: #3 : D = 1 1/2" #4 : D = 2" #5 : D = 2 1/2" #6 : D = 4 1/2" 6d OR 3" MIN 90° HOOK TIE OR STIRRUP 135° HOOK TIE OR STIRRUP 135° HOOK SEISMIC STIRRUP / TIE . . . D D D 8 STANDARD HOOK AND TIE DETAILS
