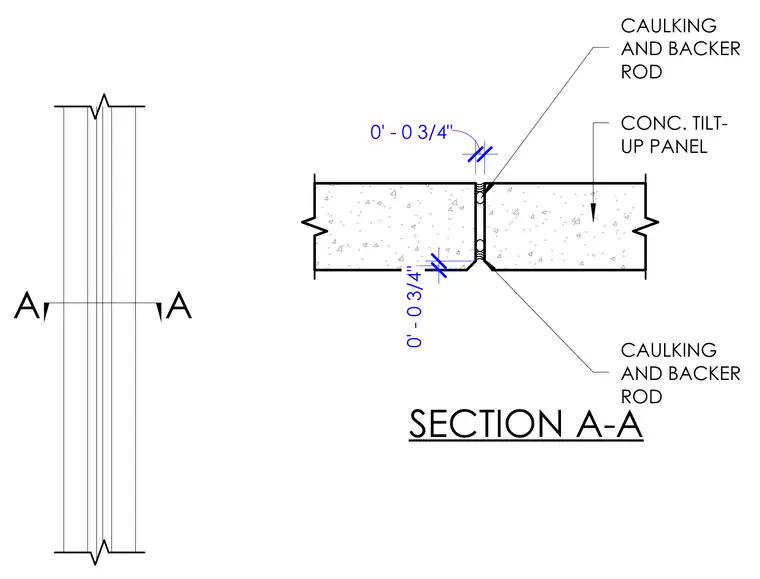

Two adjacent concrete tilt-up panels form a vertical joint sealed with backer rod and caulking at both exterior and interior faces. The joint is dimensioned at three-quarters of an inch wide.
SECTION A-A A A CONC. TILT- UP PANEL 0' - 0 3/4" 0' - 0 3/4" CAULKING AND BACKER ROD CAULKING AND BACKER ROD
