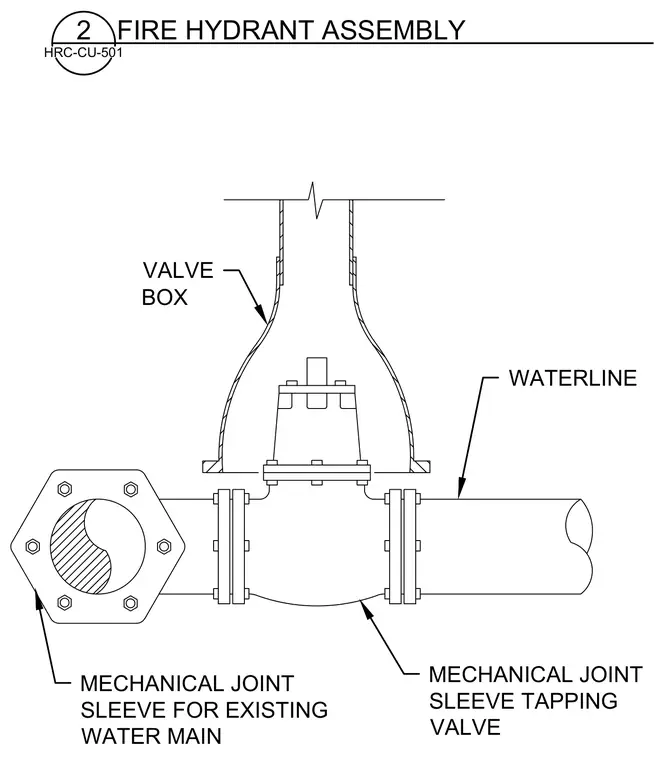

A fire hydrant connects to an existing water main utilizing a mechanical joint sleeve. A tapping valve connects the main to the waterline branch, protected by an encasing valve box.
2 HRC-CU-501 FIRE HYDRANT ASSEMBLY MECHANICAL JOINT SLEEVE FOR EXISTING WATER MAIN MECHANICAL JOINT SLEEVE TAPPING VALVE WATERLINE VALVE BOX
