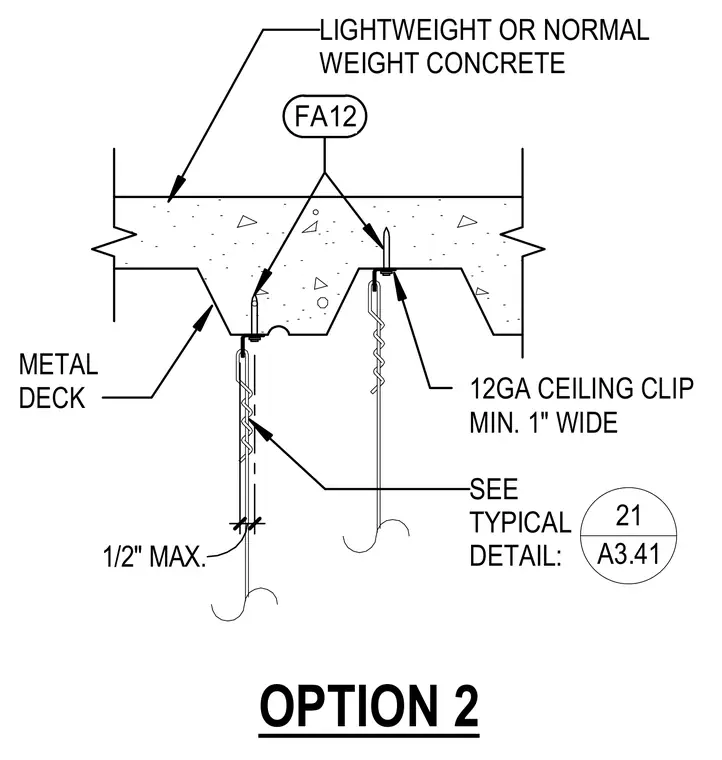

A twelve-gauge ceiling clip with a minimum width of one inch is fastened directly to the underside of a metal deck supporting lightweight or normal weight concrete. Powder-actuated fasteners or direct-tension pins secure the clip through the bottom flange of the metal deck into the concrete fill. A wire hanger extends downward from the clip with a maximum offset of one half inch.
OPTION 2 12GA CEILING CLIP MIN. 1" WIDE METAL DECK FA12 FA12 LIGHTWEIGHT OR NORMAL WEIGHT CONCRETE SEE TYPICAL DETAIL: 21 A3.41 1/2" MAX.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
