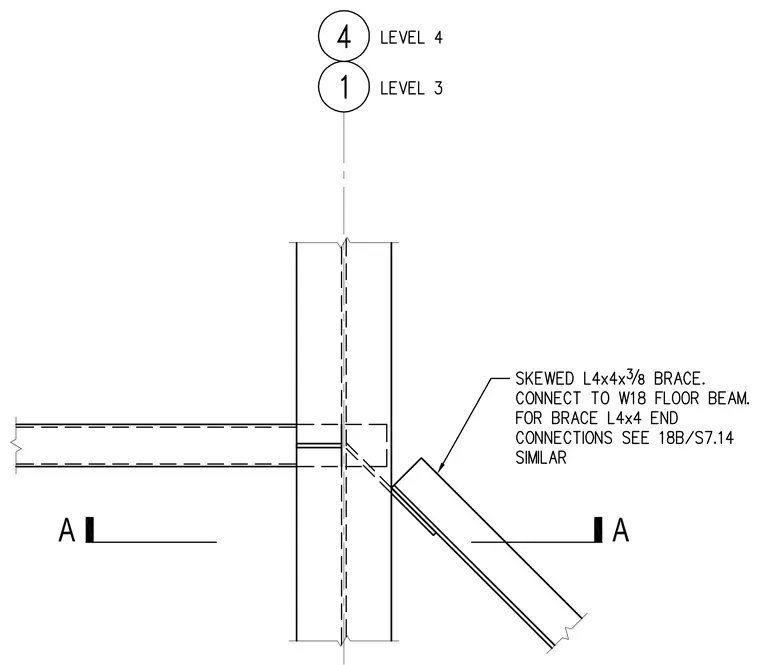

A skewed L4x4x3/8 angle brace connects to a W18 floor beam. The brace end connection details are referenced to detail 18B on sheet S7.14. Grid level markers indicate vertical positioning between Level 3 and Level 4.
