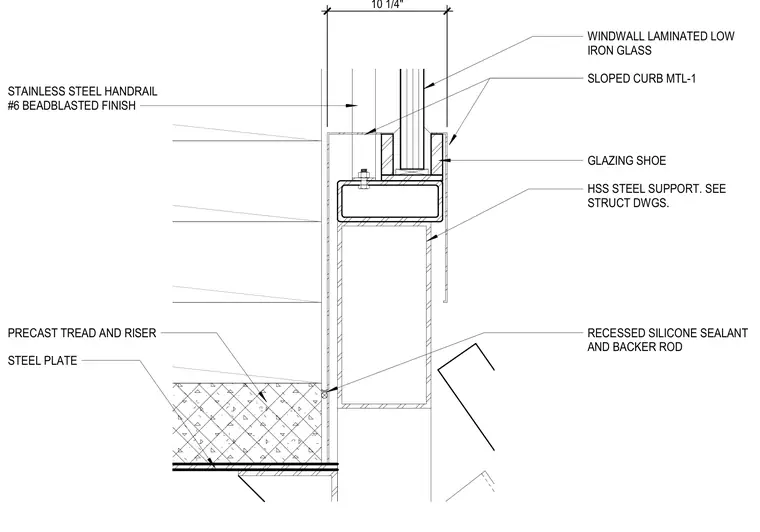

A 1-1/4 inch stainless steel handrail with a number 6 beadblasted finish mounts directly above a hollow structural section steel support member. Windwall laminated low iron glass sits within a glazing shoe supported by a sloped metal curb. The assembly ties into a precast concrete tread and riser backed by a steel plate. Recessed silicone sealant and backer rod seal the joint at the stair connection. The hollow structural section steel support sizing is referenced to structural drawings.
WINDWALL LAMINATED LOW IRON GLASS HSS STEEL SUPPORT. SEE STRUCT DWGS. SLOPED CURB MTL-1 GLAZING SHOE STEEL PLATE PRECAST TREAD AND RISER RECESSED SILICONE SEALANT AND BACKER ROD 1 0 1 / 4 " STAINLESS STEEL HANDRAIL #6 BEADBLASTED FINISH
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
