Architectural · A-9R9ZV

Curtain Wall and Floor Slab Interface at Balcony Recess

Materials

Elements

Beams Walls Curtain Walls Balconies Ceilings Floors / Slabs

About this detail

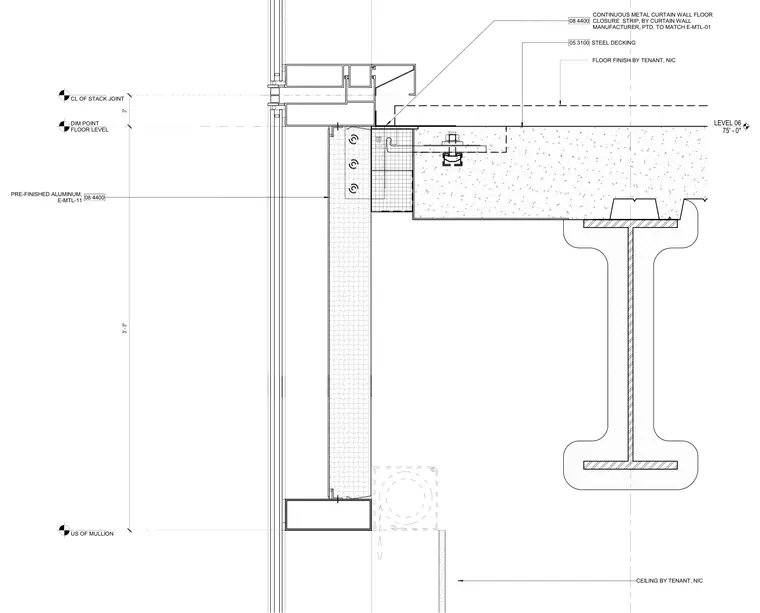

A continuous metal curtain wall interfaces with a concrete-filled steel decking floor slab at Level 06, set at elevation seventy-five feet zero inches. A pre-finished aluminum mullion connects adjacent to the floor edge, with a continuous metal curtain wall floor closure strip painted to match specification E-MTL-01. The floor finish and ceiling are by tenant and noted as not in contract. Vertical dimensions indicate a three-foot three-inch span between the centerline of the stack joint and the floor level, and a matching three-foot three-inch dimension down to the underside of the mullion.
