Architectural · A-9R6NY

Top of Stair Landing at Concrete Floor Slab

Materials

Concrete Steel

Elements

Stairs Railings / Guards Floors / Slabs Decks

Connections

Welded Connection Deck Attachment

About this detail

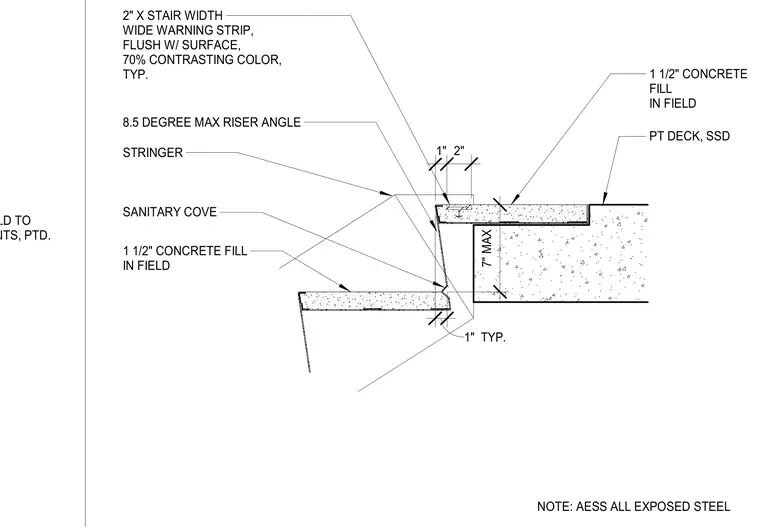

Transition between a concrete floor slab and the top of a stair run featuring a post-tensioned deck with concrete fill. The stair stringer connects adjacent to the floor edge, incorporating a sanitary cove and a contrasting warning strip set flush with the walking surface. Exposed steel is specified as architecturally exposed structural steel with ground smooth joints. Dimensions indicate maximum riser angles and clearances at the threshold.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
