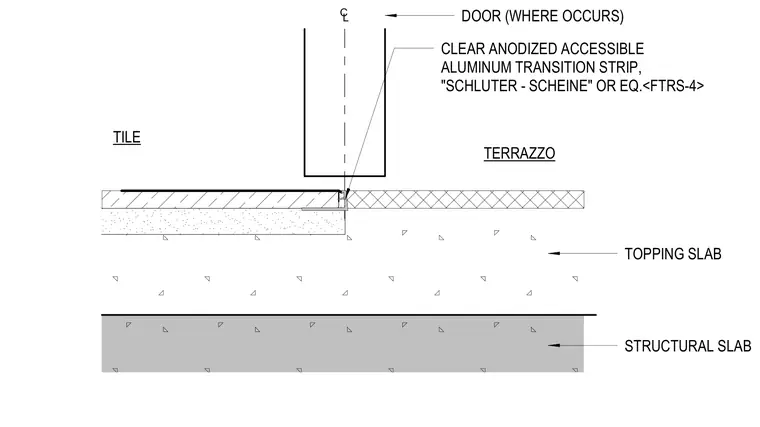

Flooring transition between tile and terrazzo finishes set over a concrete topping slab and structural slab. A clear anodized accessible aluminum transition strip, such as Schluter-Scheine or equivalent, is placed at the centerline of the door where the two floor finishes meet.
TILE TERRAZZO DOOR (WHERE OCCURS) CL TOPPING SLAB STRUCTURAL SLAB CLEAR ANODIZED ACCESSIBLE ALUMINUM TRANSITION STRIP, "SCHLUTER - SCHEINE" OR EQ.<FTRS-4>
