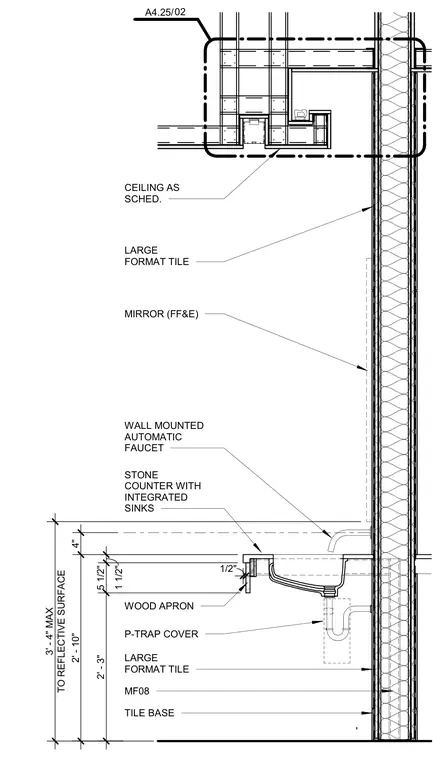

This interior wall section details a restroom vanity assembly featuring a stone counter with integrated sinks supported by a wood apron. A wall-mounted automatic faucet connects above the counter, while a P-trap cover conceals the plumbing below. The wall surfaces are finished with large format tile and a tile base, complemented by a mirror mounted to the reflective surface. Vertical dimensions establish the positioning of the counter, mirror, and ceiling height.
2' - 3" 5 1/2" 1 1/2" 4" 2' - 10" MIRROR (FF&E) TO REFLECTIVE SURFACE 3' - 4" MAX WALL MOUNTED AUTOMATIC FAUCET STONE COUNTER WITH INTEGRATED SINKS WOOD APRON 1/2" P-TRAP COVER CEILING AS SCHED. LARGE FORMAT TILE / A4.25 02 LARGE FORMAT TILE TILE BASE MF08
