A diagonal wall brace is anchored to the non-bearing steel stud wall top track and secured overhead to the building structure. The three-and-five-eighths-inch by eighteen-gauge diagonal wall brace features clipped flanges formed into shoes at each end and is installed at a forty-five-degree angle. At the top track, the brace is secured with three screws on each flange. Overhead attachment provides two options: fastening four screws into the lowest portion of the corrugated metal deck without penetrating the roofing, or attaching to the bottom chords of the open-web steel joists. Alternatively, a deep leg track or clip angle can be used with four powder-actuated fasteners.

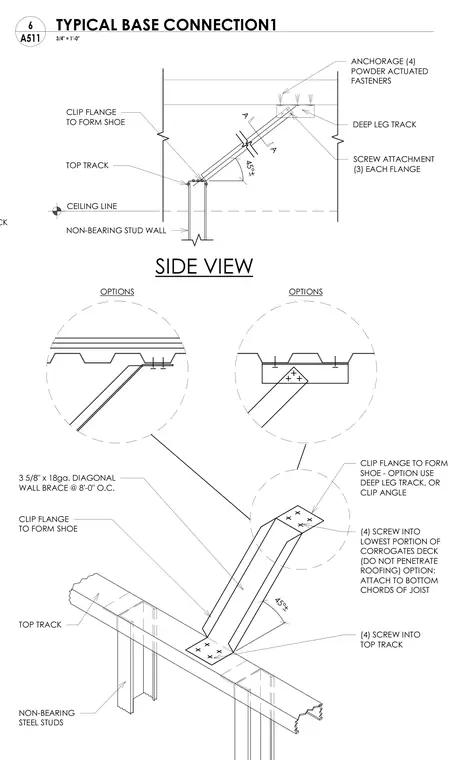

C-CHANNEL TRACK 45°± 45°± SCREW ATTACHMENT (3) EACH FLANGE CLIP FLANGE TO FORM SHOE A TOP TRACK CEILING LINE A SIDE VIEW NON-BEARING STUD WALL ANCHORAGE (4) POWDER ACTUATED FASTENERS CLIP FLANGE TO FORM SHOE - OPTION USE DEEP LEG TRACK, OR CLIP ANGLE (4) SCREW INTO LOWEST PORTION OF CORROGATES DECK (DO NOT PENETRATE ROOFING) OPTION: ATTACH TO BOTTOM CHORDS OF JOIST (4) SCREW INTO TOP TRACK NON-BEARING STEEL STUDS CLIP FLANGE TO FORM SHOE 3 5/8" x 18ga. DIAGONAL WALL BRACE @ 8'-0" O.C. TOP TRACK OPTIONS OPTIONS DEEP LEG TRACK 3/4" = 1'-0" A511 6 TYPICAL BASE CONNECTION1
