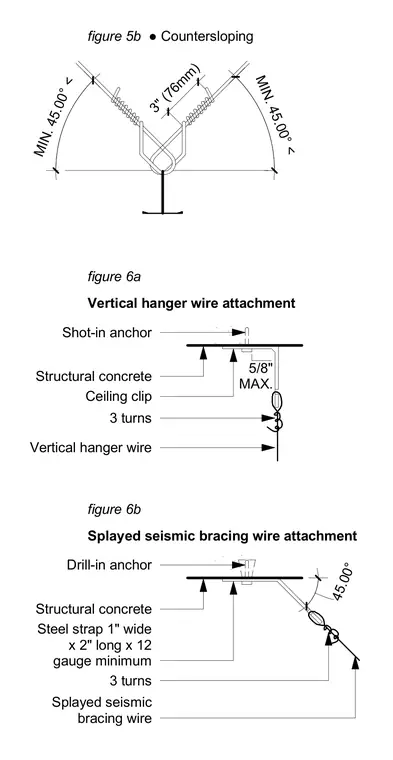

Suspended ceiling attachments to structural concrete overhead are detailed for both vertical hanger wires and splayed seismic bracing wires. Vertical hanger wires secure to a shot-in anchor embedded in the structural concrete via a ceiling clip, finished with a minimum of three turns. Splayed seismic bracing wires anchor to the concrete using a drill-in anchor attached to a steel strap measuring 1 inch wide by 2 inches long with a 12 gauge minimum, maintaining a 45-degree angle. Additional details show countersloping requirements with a 3-inch minimum separation.
figure 5b ● Countersloping 3" (76mm) MIN. 45.00° < MIN. 45.00° < figure 6a Vertical hanger wire attachment Shot-in anchor Structural concrete Ceiling clip 5/8" MAX. 3 turns Vertical hanger wire figure 6b Splayed seismic bracing wire attachment Drill-in anchor Structural concrete Steel strap 1" wide x 2" long x 12 gauge minimum 3 turns Splayed seismic bracing wire 45.00°
