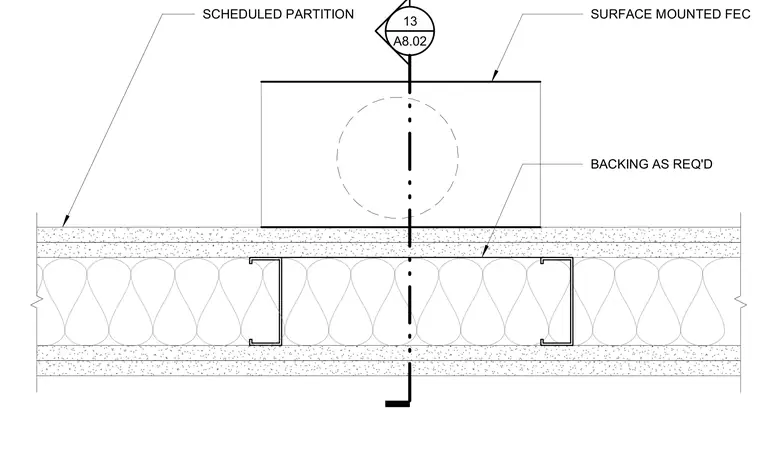

A surface-mounted fire extinguisher cabinet mounts to the face of a scheduled partition with required backing installed between the framing studs. The partition consists of steel studs with gypsum wallboard on each side. Additional blocking is placed as required to support the cabinet weight.
