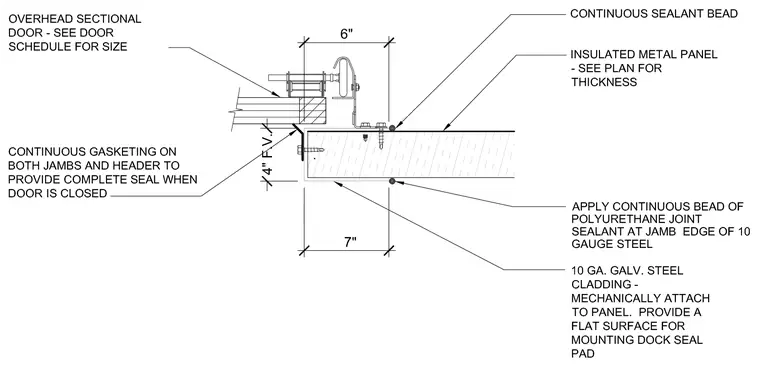

An overhead sectional door track and framing member interface with an insulated metal panel wall assembly. Ten gauge galvanized steel cladding is mechanically fastened to the panel to provide a flat mounting surface for a dock seal pad, with a continuous bead of polyurethane joint sealant applied at the jamb edge. Continuous gasketing is installed on both jambs and the header to establish a complete seal when the door is closed, supplemented by a continuous sealant bead at the panel connection.
