Inlay Tile Piece Dimensions

About this detail

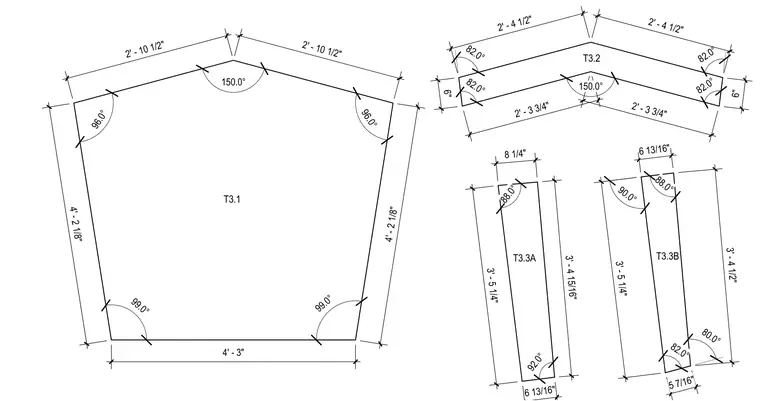

This drawing outlines the precise dimensional layouts and geometric angles for custom inlay tile pieces labeled T3.1, T3.2, T3.3A, and T3.3B. Piece T3.1 measures 4 feet 3 inches wide at the base with side lengths of 4 feet 2-1/8 inches and top segments of 2 feet 10-1/2 inches, featuring internal angles of 99.0°, 96.0°, and 150.0°. Piece T3.2 spans 5 feet 7-1/2 inches overall with a 6-inch width and 82.0° end angles. The smaller rectangular and tapered pieces T3.3A and T3.3B include specific edge lengths ranging from 3 feet 4-1/2 inches to 3 feet 5-1/4 inches with detailed corner angles between 80.0° and 92.0°.
