Ladder Bracket Connection at Structural Steel Beam

Materials

Steel Metal (misc.)

Elements

Beams Walls Waterproofing / Flashing Connections / Plates Roof / Floor Openings

Connections

Bolted Connection

About this detail

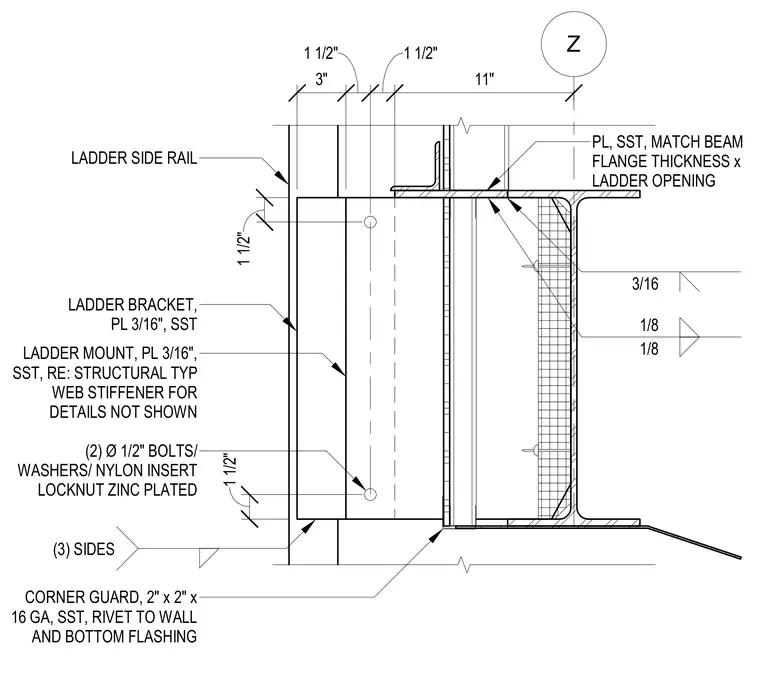

A three-sixteenth-inch stainless steel ladder bracket secures the ladder side rail using two one-half-inch diameter zinc-plated bolts with washers and nylon insert locknuts. The bracket mounts to a three-sixteenth-inch stainless steel ladder mount plate matching the beam flange thickness across the ladder opening. A two-inch by two-inch by sixteen-gauge stainless steel corner guard is riveted to the wall and bottom flashing. A web stiffener is provided per structural typical details.
