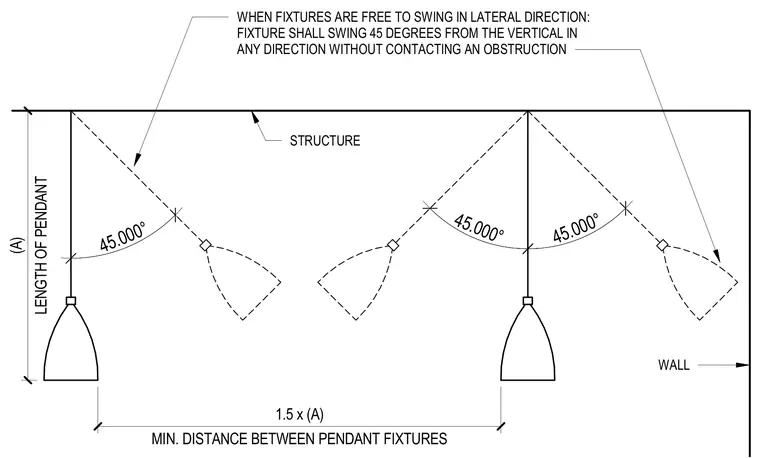

Pendant light fixtures suspended from the structure must maintain a minimum distance between fixtures equal to one and a half times the pendant length. Free-swinging fixtures require a forty-five degree clearance from the vertical in all lateral directions without contacting any obstructions or adjacent walls.
LENGTH OF PENDANT (A) MIN. DISTANCE BETWEEN PENDANT FIXTURES 1.5 x (A) 45.000° 45.000° WHEN FIXTURES ARE FREE TO SWING IN LATERAL DIRECTION: FIXTURE SHALL SWING 45 DEGREES FROM THE VERTICAL IN ANY DIRECTION WITHOUT CONTACTING AN OBSTRUCTION STRUCTURE 45.000° WALL
