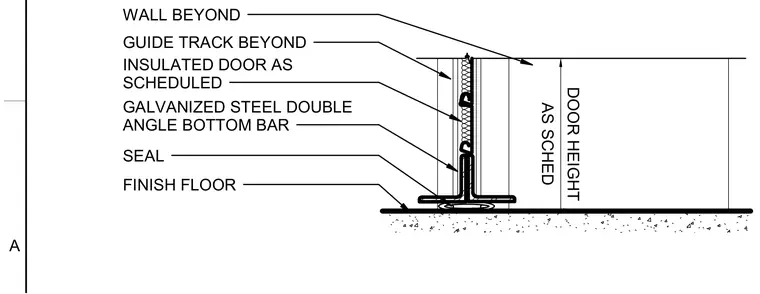

An insulated door as scheduled is positioned within guide tracks beyond adjacent walls, extending to a specified door height. The base of the door features a galvanized steel double angle bottom bar equipped with a continuous seal resting against the finish floor.
AS SCHED DOOR HEIGHT GUIDE TRACK BEYOND INSULATED DOOR AS SCHEDULED GALVANIZED STEEL DOUBLE ANGLE BOTTOM BAR SEAL FINISH FLOOR WALL BEYOND A
