A 3-inch square 12-gauge steel fence post embeds into a 14-inch diameter concrete pier footing with a depth of 54 inches. The pier is reinforced with a cage consisting of six number 5 vertical bars and a number 3 rebar spiral with a 2-inch pitch. The spiral features 3 extra turns within the top 5 inches of the footing. The concrete mix is specified at 3000 PSI.

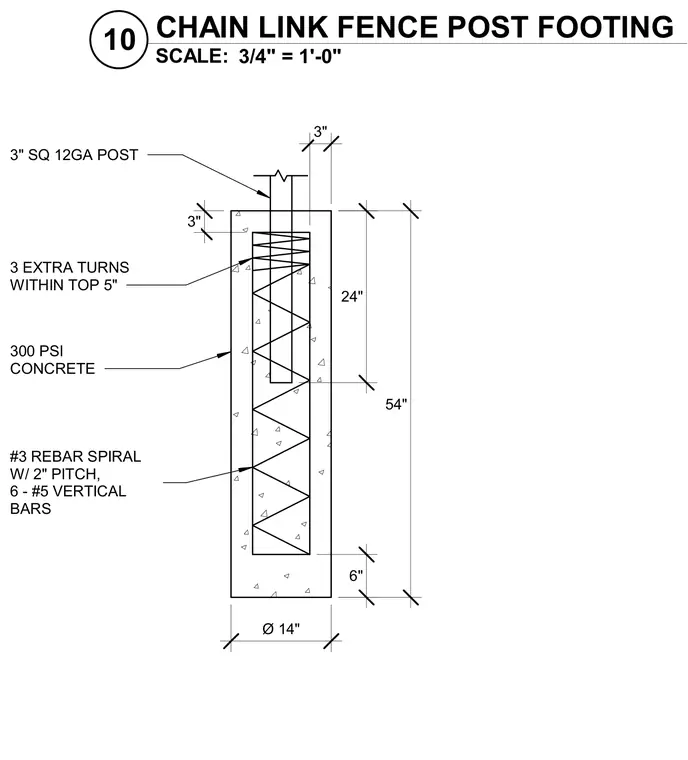

6" 24" 54" 3" 3" 3" SQ 12GA POST 3 EXTRA TURNS WITHIN TOP 5" 300 PSI CONCRETE #3 REBAR SPIRAL W/ 2" PITCH, 6 - #5 VERTICAL BARS Ø 14" SCALE: 3/4" = 1'-0" 10 CHAIN LINK FENCE POST FOOTING
